PELCO Small Sample Cleaver

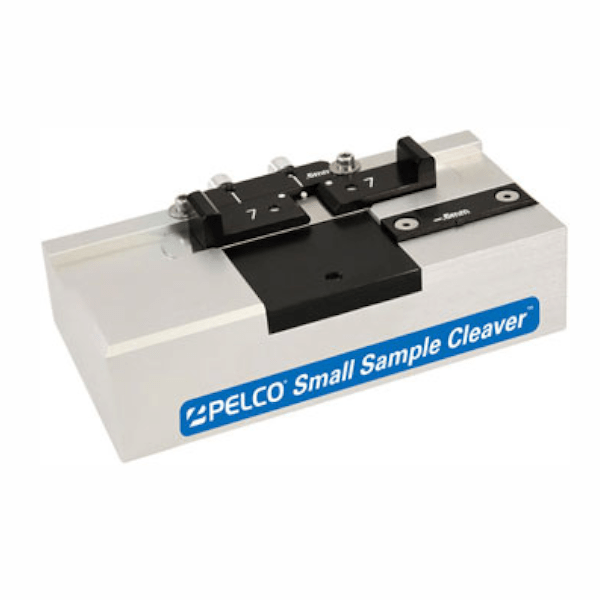

The PELCO® Small Sample Cleaver™
Using simple mechanics, the PELCO® Small Sample Cleaver™ (formerly from LatticeGear™) uses a novel sample holder and a cleaving platform to safely cleave samples into chips as small as 2 x 2mm.

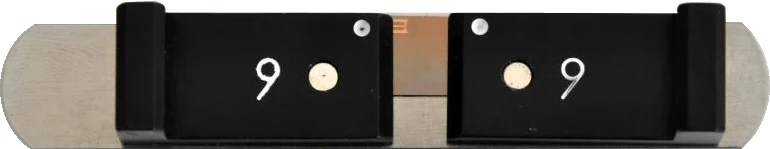

The novel sample holder allows samples from 4-10mm to be held during indenting and cleaving. No more handling samples directly with fingers – gloved hands are ok.
The holder has no screws, springs or pins. Accepts samples from 3-15mm in width and 200-900µm in thickness.
Features
- Accepts samples from 3-15mm in width and 200-900µm in thickness
- Four magnetic hold-downs for various sample thicknesses
- Securely transfer the sample to the PELCO® LatticeAx® for indent, then back to the Small Sample Cleaver™ for cleaving
- Two cleaving pins for cleaving a variety of sample types

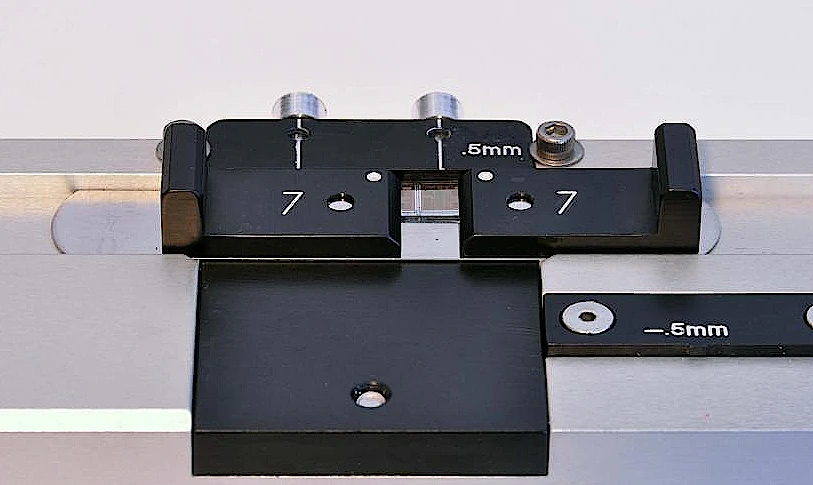

- Gauge sets the sample for an 0.5mm indent versus the standard 1mm indent on the PELCO® LatticeAx®
Small Sample Hold-downs
Product
Order
Product
PELCO Small Sample Cleaver
A novel sample holder and a cleaving platform to safely cleave samples into chips as small as 2 x 2mm.
Order
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 54367 | PELCO Small Sample Cleaver Cleaving System |
Each | € 1.766,30 |
