PELCO FlexScribe
Precision Topside Scribing for all Materials

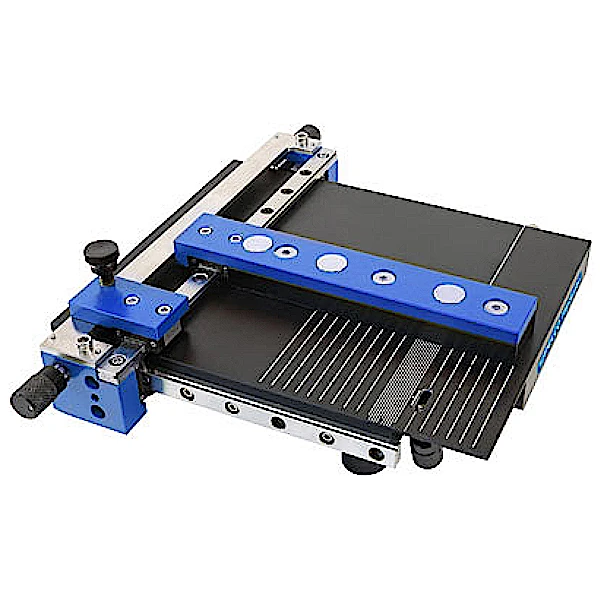

The PELCO® FlexScribe™ (formerly from LatticeGear™) is a super-fast, simple method for downsizing wafers and samples by scribing on the topside. It uses a scribing wheel mounted to a sliding scribing mechanism that always makes a straight scribe.
This system is used to scribe a wide variety of materials without restrictions on shape, including glass slides, coverslips, silicon, III-V, sapphire and other crystalline and brittle materials. It can address very small samples down to 5mm up to 200mm wafers for the #54340 model, and up to 300mm wafers for the #54342 model.
The standard tungsten carbide cutter installed on the PELCO® FlexScribe™ is great for a wide variety of samples including:
- silicon
- glass
- GaAs
- other crystalline materials.
Diamond and deep-cutting scribing wheels are also available.
Indenter recommendations:
#54346 Tungsten carbide scribing wheel is good for general purpose use.
#54343 Diamond cutter for very thin glass, tempered glass and hard materials such as sapphire.
#54344 Deep cutting wheel, for applications like thick glass or off-axis cleaving.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 54340 | PELCO FlexScribe 200 Front-Side Scribing Tool for up to 200mm Wafers |
Each | € 2.274,40 | ||
| 54342 | PELCO FlexScribe 300 Front-Side Scribing Tool for up to 300mm Wafers |
Each | € 4.253,30 | ||
| 54343 | Diamond Scribing Wheel for PELCO FlexScribe |
Each | € 324,70 | ||
| 54344 | Deep Cut Scribing Wheel for PELCO FlexScribe |
Each | € 62,40 | ||
| 54346 | Standard Replacement Scribing Wheel for PELCO FlexScribe |
Each | € 62,40 | ||
| 54345 | Double-Sided Ruled Mat for PELCO FlexScribe 200 |
Each | € 32,30 | ||
| 54348 | Double-Sided Ruled Mat for PELCO FlexScribe 300 |
Each | € 32,30 |
