Cutlam 4.0

Products

Cutlam 4.0

The CUTLAM®4.0 is designed especially for manufacturing companies with high standards who are looking for high- quality and reliable equipment for heavy-duty use with a great cutting capacity.

La CUTLAM®4.0 is a pedestal-mounted single-block machine with an integrated recirculation/decanter tank. The wheel’s vertical descent can be controlled automatically (oleo pneumatic) or manually using the joystick. The maximum cutting descent is 240 mm.

Adapted for intensive use on heavy components, the CUTLAM®4.0 is fitted with a powerful 5.5 kW motor. The wheel’s speed is adjustable from 1000 to 4000 rpm, the feed speed is adjustable. 2 cutting modes are available: sequential automatic with adjustable frequency or continuous.

An end of cycle sensor shuts off the machine and automatically raises the wheel after each operation. The controls are easy to use and intuitive: they are centralized on the 5.7’’ arm-mounted touch-screen.

The wide cast-iron clamp bench has 6 T-longitudinal grooves and 5 transversal grooves, and as an optional extra may be made mobile along the X and the A axes.

Technical characteristics and equipment

The multi-point hose over the wheel and part ensures optimum cooling for high-quality cuts and consistent results.

In the standard configuration, the work area is illuminated by a adjustable spotlight, and an external shower head is provided for cleaning the cutting area.

In order to optimise your equipment according to your needs, a variety of accessories and optional extras are available.

Option

Positioning laser60 CT403 00

Machine variations

Table with manual transversal displacement (X axis) of a 120 mm stroke60 CT40A 10
Table with manual longitudinal displacement (Y axis) of a 180 mm stroke60 CT40A 20

Theoretical cutting capacity

*space under wheel

Specification
Wheel Ø
300 to 400 mm
Shaft Ø
25,4 mm
Standard flanges Ø
100 mm
Max cutting capacity
Ø 154 mm or 145 x 160 mm or 90 x 275 mm (with a Ø 400 mm wheel) + right and left opening for long parts)
Passage under the wheel
190 mm (with a Ø 400 mm wheel)
Vertical movement
Manual
Lubrification
Recirculation system, 140 litres, on casters Cleaning system integrated, with a shower head outside of the cutting chamber
Motor power
5,5 kW
Rotational speed
Variable, from 1000 to 4000 rpm
Arm speed advance
5 to 200 mm/min during cutting
Table
Double grooved treated cast iron, 400 x 400 mm
Type of groove
T groove 12 mm (6 longitudinal, 5 transversal)
Lightening
LED
Protection
Cover with locking system
Body
Steel coated with epoxy paint
Pneumatic feeding compressed air
6 bars filtered 5 µ
Electrical power
6 kW cumulative
Electrical consumption
24 Ah
Voltage
400 Volts – 50 Hz (three-phase)
Dim. W x H x D
818 (+ 300 mm with control panel) x 1802 x 1280 mm
Weight
650 kg
Reference
60 CT40A 00
Loading...
Product
Order
Product

Cutlam 4.0
no. B6306

Order

Art.Description Unit PriceQuantity
AGB6306

Cutting Machine CUTLAM 4.0 Z auto & X axis manual

Each p.o.r.
B6307

Cutting machine CUTLAM 4.0 Z auto & Y axis manual

Each p.o.r.
B6308

Cutting Machine CUTLAM 4.0 Automatic Descent of the Wheel

Each p.o.r.
Brand: LamPlan

Accessories

Loading...
Product
Description
Order
Product

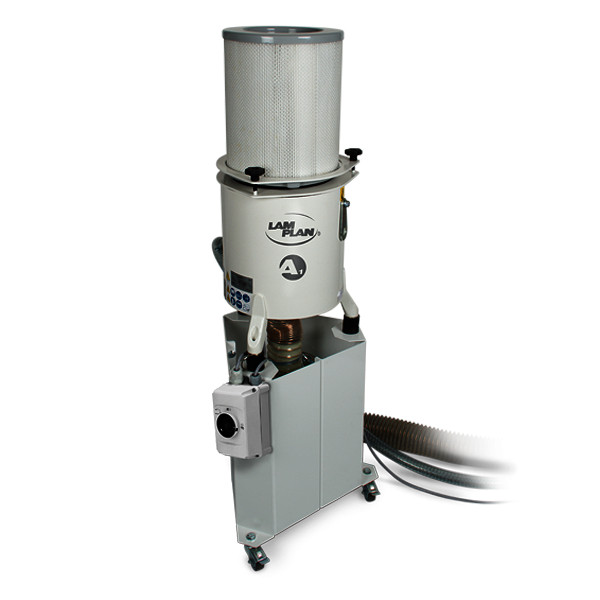

Oil mist extraction device
Oil mist extraction device
no. 60 CT204 00

Description

The LAM PLAN vaccuming system extracts the “polluted” air inside the cutting chamber of your cutting machine.

  • A special multilayer filter will stop the smallest polluting particles, thus preventing their dispersion into the atmosphere.
  • The cutting fluid, in the liquid state, is returned to the cutting machine recirculation tank to be reused. (An evacuation is provided for this purpose on the vacuuming system).
  • A cartridge post-filter, located above the suction system, ensures a high filtration level, up to 99.97%.
  • An adapter part (LAM PLAN code 60CT20820) is provided to adapt the suction hose to the canopy of the LAM PLAN cutting machine.
  • The vacuuming system is mounted on a trolley with wheels, allowing an easy positioning.
  • A drain valve, located in the trolley, collects the condensate.
Order

Art.Description Unit PriceQuantity
60 CT204 00

Oil mist extraction device – A1

Each p.o.r.
Brand: LamPlan

Product
Description
Order
Product

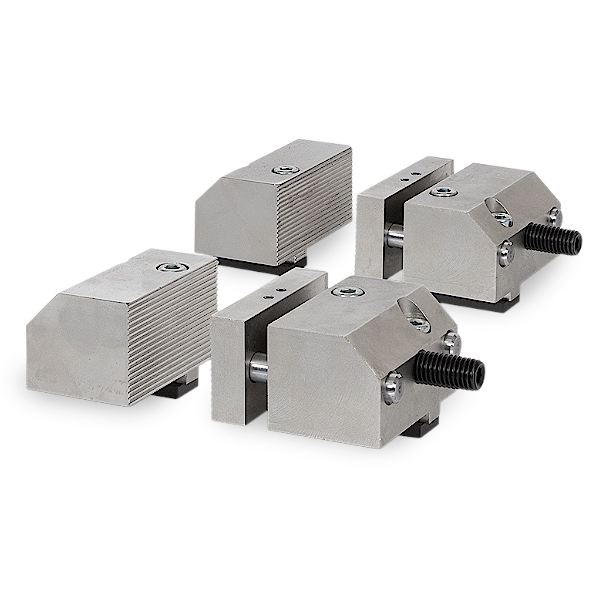

Double vice with screw tightening system
no. 60 CT200 40

Description

Double vice with screw tightening system (left and right side of the wheel)

2 x 2 element vice, without sole to obtain maximal length clamping
Jaws width 80 mm, Jaws height 45 mm
T-slot 12 mm screw included
Left and right levers

Order

Art.Description Unit PriceQuantity
60 CT200 40

Double vice with screw tightening system

Each p.o.r.
Brand: LamPlan

Product
Order
Product

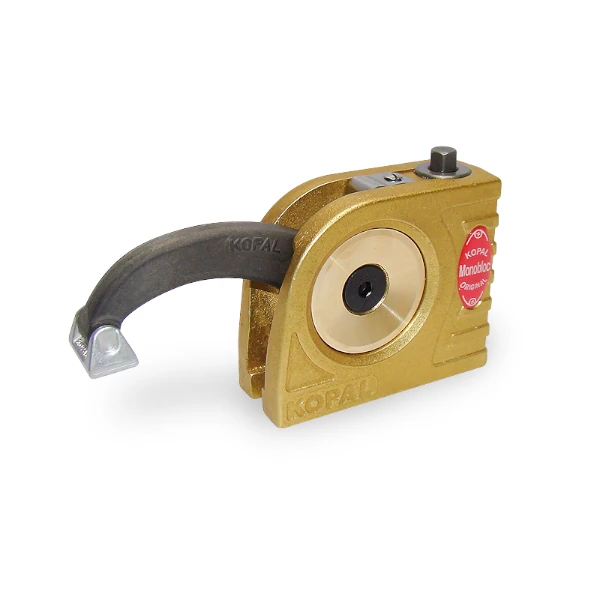

Universal clamping KOPAL 61
no. 60 081282 20

Order

Art.Description Unit PriceQuantity
60 081282 20

Universal clamping KOPAL 61

Each p.o.r.
Brand: LamPlan

Product
Order
Product

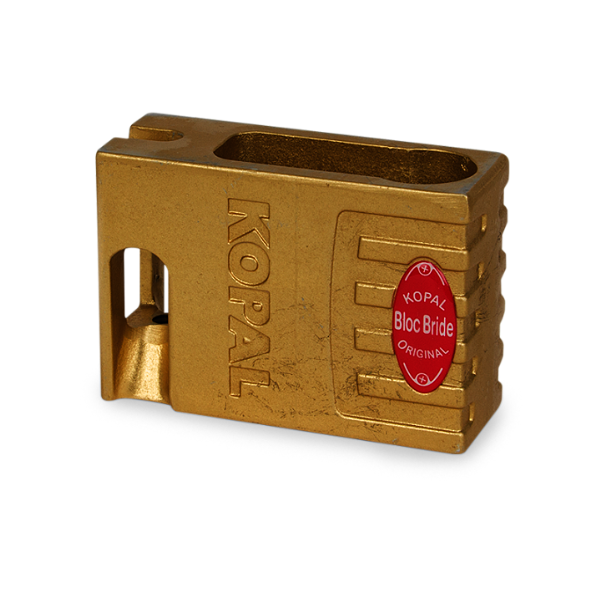

Lift for KOPAL 61
no. 60 081282 40

Order

Art.Description Unit PriceQuantity
60 081282 40

Lift for KOPAL 61

Each p.o.r.
Brand: LamPlan

Product
Order
Product

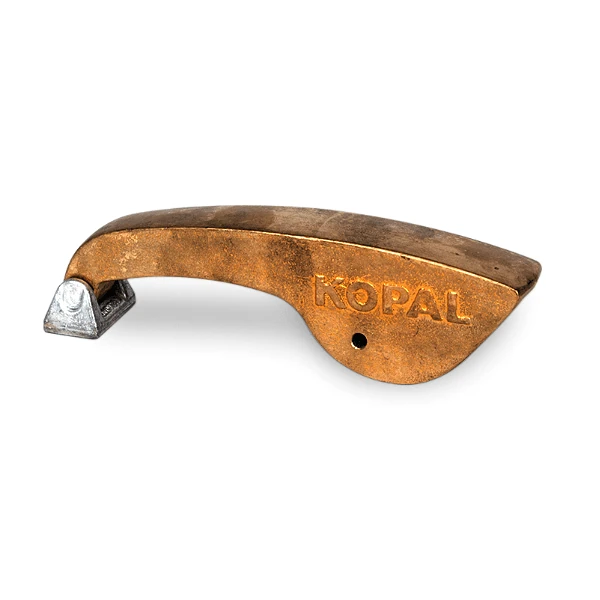

Long cam for KOPAL 61
no. 60 00285 90

Order

Art.Description Unit PriceQuantity
60 00285 90

Long cam for KOPAL 61

Each p.o.r.
Brand: LamPlan

Product
Description
Order
Product

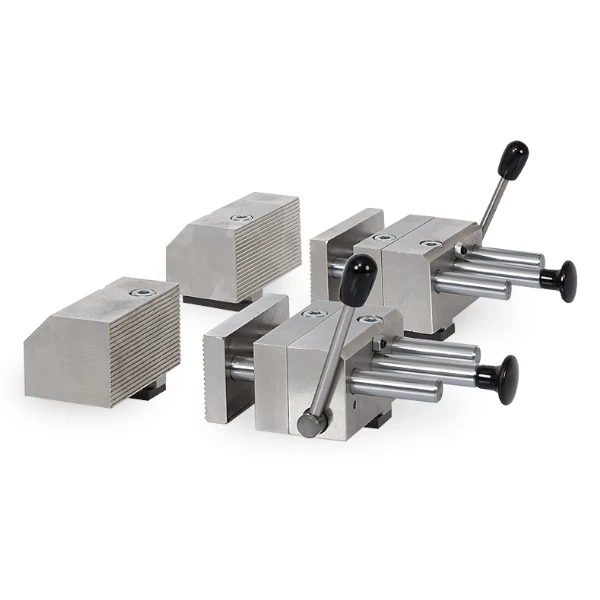

Double vice with fast tightening system 4,0, 5,0
Double vice with fast tightening system (left and right side of the wheel)
no. 60 CT400 20

Description

Double vice with fast tightening system (left and right side of the wheel)

2 x 2 element vice, without sole to obtain maximal length clamping
Jaws width 80 mm
Jaws height 70 mm
T-slot 12 mm screw included
Lever (left and right)

Order

Art.Description Unit PriceQuantity
60 CT400 20

Double vice with fast tightening system 4,0, 5,0

Each p.o.r.
Brand: LamPlan

Product
Order
Product

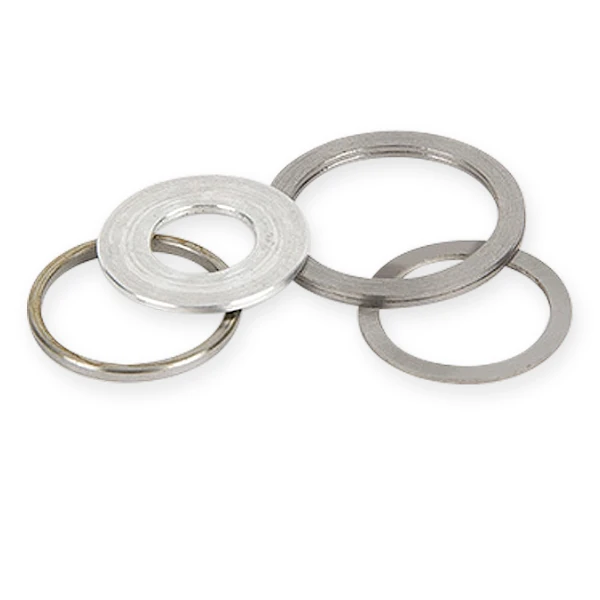

Adaptor rings 32 x 25,4 mm
Adaptor rings, steel and PVC
no. 60 00373 90

Order

Art.Description Unit PriceQuantity
60 00373 90

Adaptor rings 32 x 25,4 mm, steel

5 p.o.r.
60 00374 90

Adaptor rings 32 x 25,4 mm, PVC

5 p.o.r.
Brand: LamPlan

Product
Order
Product

Cut Lam Filters 4.0 and 5.0
100 m fabric filter for decantation tank CUTLAM 4.0 and 5.0
no. 60 00576 90

Order

Art.Description Unit PriceQuantity
60 00576 90

100 m fabric filter for decantation tank CUTLAM 4.0 and 5.0

Each p.o.r.
Brand: LamPlan
