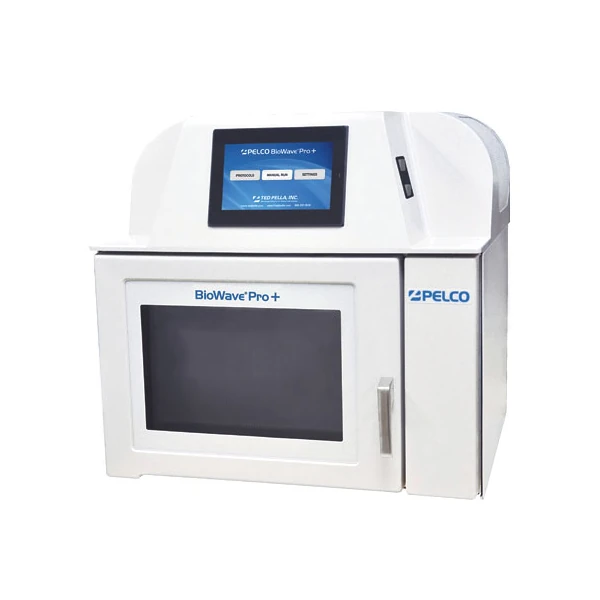

Biowave Pro+

Products

Biowave Pro+

The future of microwave tissue processing is here…

The new design of the PELCO BioWave® Pro+ introduces features that improve efficiency and streamline functionality.

It is built on trusted technology and adds enhancements for efficient laboratory processing.

This new tissue processor further enhances processing of tissue for diagnostic and research TEM, immunofluorescence and confocal specimen processing.

The PELCO BioWave® Pro+ meets the current needs of the modern laboratory with up-to-date technology.

Clickable text navigation allows for simple and clear screen interaction.
Live run-time graphs provide an easily accessible view of the current protocol in real-time.

The simplified protocol selection screen allows one-touch access to loaded and custom protocols.

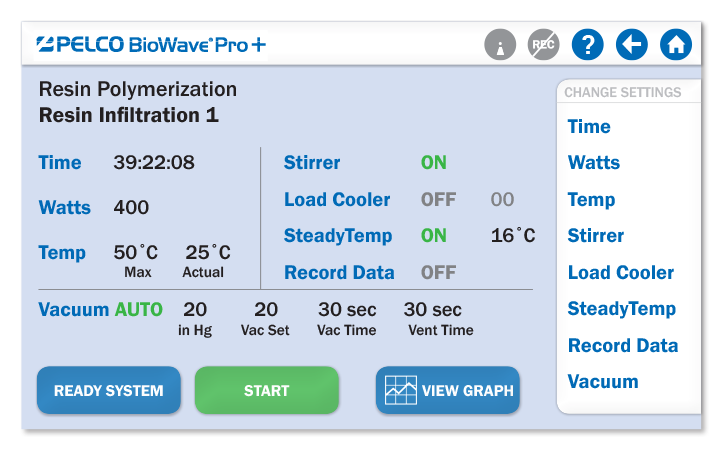

User-Friendly Run Screens

Intuitive functions in a simple, consistent format offer all setting controls within one screen.

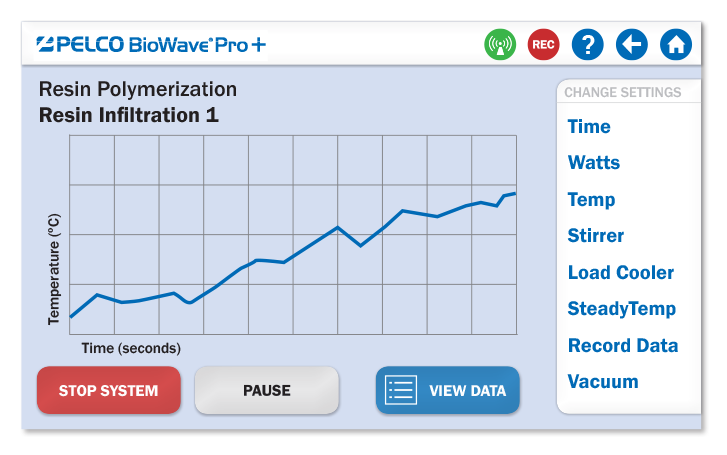

Live Run-Time Graph

Quick and convenient view of the current protocol in real-time provides an active view of run progress.

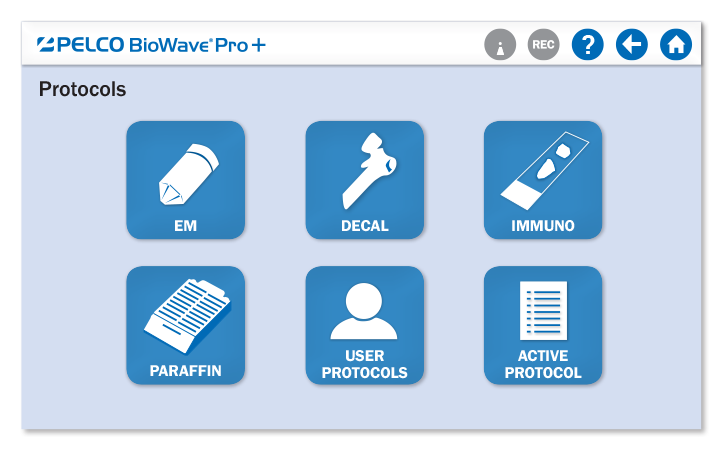

Simplified Protocol Selection

Icon-driven interface allows users one-touch access to pre-loaded and customized protocols.

The PELCO BioWave® Pro+ fits nicely into a core facility or multi-user environment by providing options to users for data manipulation.

Each user is able to create a folder for their protocols and recorded data on the PELCO BioWave® Pro+ directly or may choose to keep their data and protocols on a USB key.

The new PELCO BioWave® Pro+ Report/Protocol Manager app facilitates data transfer and review, as well as custom protocol creation and upload.

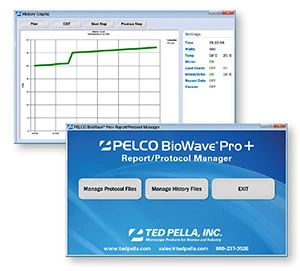

PELCO BioWave® Pro+ RPM App

The Report/Protocol Manager (RPM) app is designed to meet diagnostic laboratory regulations on reviewing recorded data for each protocol.

Recorded data can be downloaded to the USB key and then transferred into the RPM app on a laboratory computer.

The RPM app also provides an improved design for protocol creation and review.

The completed protocol can be saved to the USB key and then imported to the PELCO BioWave® Pro+ directly from the touchscreen.

Built on Trusted Technology

The PELCO BioWave® Pro+ was designed using over 25 years of proven experience in microwave tissue processing. The incredible efficiency of the PELCO BioWave® Pro+ has improved electron microscopy processing to be 95% faster than traditional bench processing.

Improvements and enhancements continue to highlight the advantages of the PELCO BioWave® Pro+ for many facets of laboratory use.

Unmatched Control

The PELCO BioWave® Pro+ offers a unique and unparalleled level of control over microwave processes for reliable and reproducible results. By being designed to properly use microwave energy, the PELCO BioWave® Pro+ provides the tools for control of the environment at the specimen level and the internal chamber.

Variable Wattage and PELCO ColdSpot® Technology

Variable wattage provides an essential avenue of control for the PELCO BioWave® Pro+. As compared to “pulsed power” microwaves, variable wattage allows the user to limit the exposure of any specimen to the minimum energy necessary to process the specimen. The patented ColdSpot® technology alleviates inconsistent wattage delivery in the microwave cavity, guarding the specimens from excessive microwave energy.

Versatility and Reproducibility

The versatility of the PELCO BioWave® Pro+ is demonstrated through the diverse Application Kits available for various laboratory procedures. A diverse and well-thought out set of accessories offers a wide range of applications with just one instrument. Accessories designed specifically for each microwave application provide for easy reproducibility.

Internal Load Cooler & Vacuum

The PELCO BioWave® Pro+ is designed as a complete system. For control of the internal environment, the ColdSpot® technology is coupled with an internal Load Cooler and requires no outside instrumentation.
By providing a built-in vacuum pump, no external connections or equipment are necessary.

Electron Microscopy Kit

This kit provides a full range of accessories designed for efficient EM processing in the microwave, enabling complete process from fixation to resin.

Kit Details

Immunolabeling Kit

The versatility of this kit equips the user for multipletypes of staining protocols.

All accessories are compatible with immunohistochemistry and immunofluorescencestains and reagents.

Kit Dtails

Paraffin Tissue Processing

All the accessories needed for complete paraffin processing are included in this kit.

Vacuum-assisted infiltration, along with microwave energy, enhances any standard protocol.

Kit Details

Decalcification Kit

The unique components of this kit provide a true advantage to the decalcification process.

Microwave technology provides notable savings of time and reagent, offsetting decalcification’s most significant limitations.

Kit Details

PELCO BioWave® Pro+ Specifications
Dimensions 553mm x 514mm x 546mm (21.75″ W x 20.25″ D x 21.5″ H)
Weight 37kg (83lb)
Microwave Power Range Continuous power from 100 – 750 watts
Microwave Frequency 2.45 Ghz
User Interface 7″ Touchscreen
Temperature Probe ±1°C
Magnetic Stirrer Integrated, 0 – 3000rpm speed
Exhaust 110 cfm capacity
Vacuum System 20″ Hg, 3 modes
Certification ETL/CE
Power 36700: 120V, 15amp, 60Hz dedicated circuit 36700-230: 230V, 10amp, 50Hz dedicated circuit
Loading...
Product
Order
Product

PELCO BioWave Pro+
no. 36700-230

Order

Art.Description Unit PriceQuantity
36700-230

PELCO BioWave Pro+ Microwave Processing System, 230VAC

Each p.o.r.
Brand: Ted Pella

Equipment, Accessories & Consumables

Loading...
Product
Description
Technical Note
Order
Product

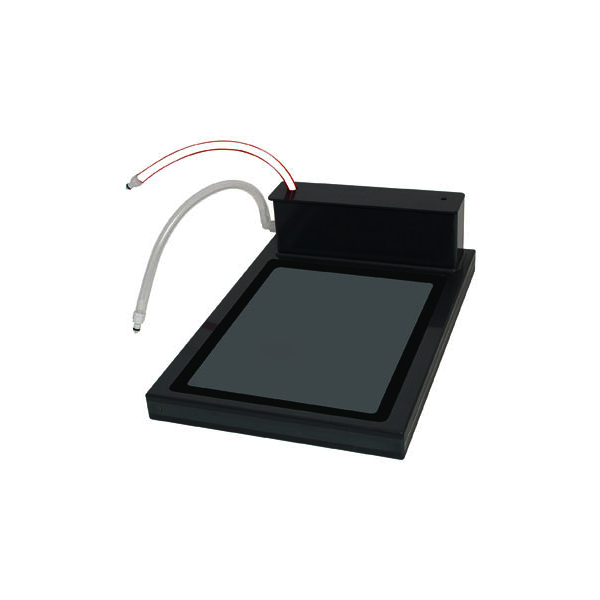

PELCO ColdSpot Pro
The PELCO ColdSpot Pro is designed for microwave processing techniques that benefit from an efficient heat transfer between the PELCO ColdSpot surface and the sample.
no. 36116-10

Description

designed as a temperature controlled surface
will enhance most tissue processing steps

The PELCO ColdSpot Pro is designed for microwave processing techniques that benefit from an efficient heat transfer between the PELCO ColdSpot surface and the sample.
This product design provides excellent temperature control for electron microscopy tissue processing, immunolabeling and in situ hybridization protocols.

The glass surface dissipates heat quickly and efficiently. This design creates a flat surface across the entire glass top enabling a wide range of usage with consistency.
The temperature of the water inside this PELCO ColdSpot should not exceed 60 C (140 F) because the thermal properties of the plastic and the adhesive will be compromised at higher temperatures.

All PELCO Microwave processors can be set to maintain the temperature below this critical point. Designed for use with 3536 PELCO Vacuum Chamber.

Glass plate area dimensions: 223 W x 291mm D (8.78 W x 11.34″ D)
Overall dimensions: 267 W x 381 D x 108mm H (10.5 W x 15 D x 4.25″ H)

Technical Note

Technical Note

Download Technical Note
Order

Art.Description Unit PriceQuantity
36116-10

PELCO ColdSpot Pro

Each € 1.475,10
✓
spinner
Brand: Ted Pella

Product
Description
Technical Note
Order
Product

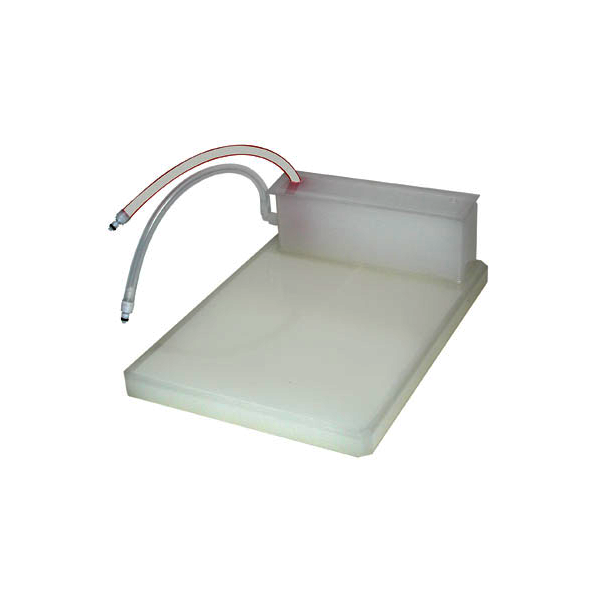

PELCO ColdSpot Plus
The PELCO ColdSpot Plus is designed for microwave processing techniques that benefit from retained heat and higher solution temperatures
no. 36116-20

Description

designed for higher solution temperatures

The PELCO ColdSpot Plus is designed for microwave processing techniques that benefit from retained heat and higher solution temperatures.

The unique construction of this PELCO ColdSpot is designed for the temperature requirements encountered during paraffin processing applications.
The all-welded construction combined with the solvent resistant and thermal properties of the plastic make it the ideal choice when processing solution temperatures of 50 C (122 F) or higher are required.

This PELCO ColdSpot Plus design provides control of the microwave environment while meeting the demands presented during high temperature processing techniques.

Top work area dimensions: 267 W x 286mm D (10.5 W x 11.25″ D)
Overall dimensions: 267 W x 356 D x 105mm H (10.5 W x 14 D x 4.125″ H)

Technical Note

Technical Note

Download Technical Note
Order

Art.Description Unit PriceQuantity
36116-20

PELCO ColdSpot Plus

Each € 999,60
✓
spinner
Brand: Ted Pella

Product
Description
Order
Product

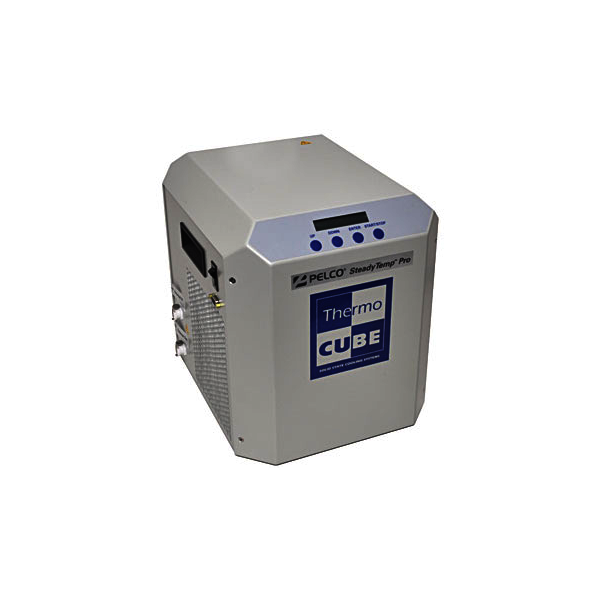

PELCO SteadyTemp Pro
The PELCO Steady Temp™ Pro is specially designed to work in tandem with the PELCO BioWave Pro+ microwave system.
no. 50062

Description

PELCO SteadyTemp Pro
Solid State Chiller with Digital Control

Fully integrates with the PELCO BioWave Pro+ Microwave System to provide temperature control at the sample level.

The PELCO Steady Temp Pro is specially designed to work in tandem with the PELCO BioWave Pro+ microwave system.

This chiller provides temperature control at the sample level within the microwave chamber.
The technology of the PELCO ColdSpotPro combined with the PELCO SteadyTemp Pro Solid State Chiller offers the unique ability to provide continuous temperature control from 4 C to 80 C.

The compact design, fully integrated controls linked to the PELCO BioWave Pro+ system, and reliable Freon-free technology make the PELCO SteadyTemp Pro an essential accessory for any laboratory microwave processing application.



Exterior Dimensions: 234 x 280 x 324mm (12.75″ x 11″ x 12.75″)
Weight: 61.6 kg (28 lb)
Electrical: Universal Voltage 115-230 VAC, 50/60 Hz, 7/5 A
Noise Level: 60 dba.
Order

Art.Description Unit PriceQuantity
50062

PELCO SteadyTemp™ Pro Digital Thermoelectric Recirculator

Each € 7.361,30
✓
spinner
Brand: Ted Pella

Processing

Loading...
Product
Description
Order
Product

PELCO HistoWave Cassette System
The PELCO HistoWave Cassette System consists of a Cassette Tank and Cassette Rack.
no. 36150 to 36150-1

Description

PELCO HistoWave Cassette System

Can be used as a stand alone system or in the PELCO TissueVac accessory.

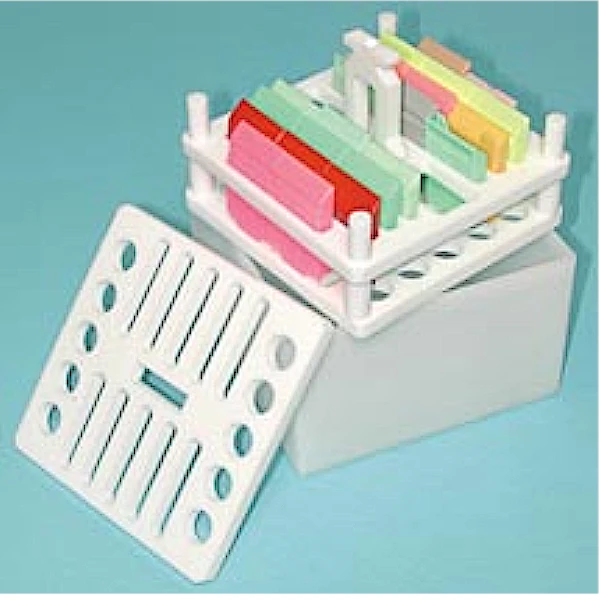

Cassette Rack shown assembled and loaded.
Note the two over-sized (white) cassettes being accommodated in the center of the rack.


The PELCO HistoWave Cassette System consists of a Cassette Tank and Cassette Rack. The design provides for ease of loading, unloading and fluid exchange during processing. The system will hold 26 standard-sized plastic cassettes or 22 standard and 2 over-sized cassettes. There is a hole in the handle for the temperature probe. The amount of reagent needed to cover 1 or 26 cassettes is approximately 500ml. It is easiest to add solutions when the system is assembled. The system is made of microwave-compatible and solvent-resistant plastics.

Use the optionally available Paraffin Heating Tile, Prod. No. 36150-1, under the Cassette Tank when more heat generation is required in the Microwave Tissue Processor for paraffin embedding.

Note: The PELCO HistoWave Cassette System may also be used in the PELCO TissueVac Vacuum Chamber, Prod. No’s 36161 and 36160, which is an accessory for the PELCO BioWave Pro and previous PELCO Microwave Processors.



Cassette Tank PELCO HistoWave Cassette System loaded and assembled. Cassette Holder with cassettes may be rested on tank to facilitate draining. Optional Paraffin Heating Tile


Dimensions of Cassette Holder (with handle):
79.4mm H x 111.2mm squareInside Dimensions of Cassette Tank:
73mm D x 115.1mm square

Size of Standard Histology Cassette:
Length: 4.06cm
Width: 2.86cm
Depth: 0.7cm

Size of Over-Sized Histology Cassette:
Length: 4.30cm
Width: 2.86cm
Depth: 1.30cm

Order

Art.Description Unit PriceQuantity
36150

PELCO HistoWave Cassette System

Each € 569,70
✓
spinner
36151

PELCO HistoWave Cassette Tank only

Each € 366,50
✓
spinner
36151-1

PELCO HistoWave Cassette Rack only

Each € 400,30
✓
spinner
36150-1

PELCO HistoWave Paraffin Heating Tile

Each € 67,90
✓
spinner
Brand: Ted Pella

Product
Description
Order
Product

PELCO Prep-Eze Specimen Holders
no. 36157 to 36158-3

Description

PELCO Prep-Eze Microwave-use Specimen Holders

The PELCO Prep-Eze Holder accomodates processing 6-12 specimen batches.

The unique design provides simpler handling and reduction in the volume of chemicals needed.
The PELCO Prep-Eze fits with the 36135 Polypropylene Petri Dishes.

The outside dimensions of the holders are: 50.8mm diameter x 19mm High 44.5mm High with handle)
No. 36157-1 has 6 wells, 12.7mm diameter x 17mm deep.
No. 36158-1 has 12 wells, 9.5mm diameter x 17mm deep.

The mesh openings are 420 m.
The small hole can be used to hold the temperature probe for specimen level temperature control.

36157-3 36158-3

Numbered mats, available for both sizes, are plastic laminated to resist chemicals and may be written on with a dry erase marker.
With the holder placed on the mat, easy identification of specific wells is possible.
The kits includes one specimen holder, one ID mat and 20 polypropylene petri dishes (58 x 15mm, Prod. No. 36135) suitable for use in the microwave.

Order

Art.Description Unit PriceQuantity
36157

PELCO Prep-Eze™ 6-well Kit

Each € 151,00
✓
spinner
36157-1

PELCO Prep-Eze™ 6-well Holder

Each € 119,50
✓
spinner
36157-3

PELCO Prep-Eze™ 6-well I.D. Mat

3 € 34,70
✓
spinner
36158

PELCO Prep-Eze™ 12-well Kit

Each € 180,80
✓
spinner
36158-1

PELCO Prep-Eze™ 12-well Holder

Each € 166,40
✓
spinner
36158-3

PELCO Prep-Eze™ 12-well I.D. Mat

3 € 34,70
✓
spinner
Brand: Ted Pella

Product
Description
Order
Product

PELCO Microwave Microcentrifuge Tube Holder
Made from PTFE, designed to hold 18 conventional polyethylene microcentrifuge tubes.
no. 36134

Description

PELCO Microwave Microcentrifuge Tube Holder

Made from PTFE, designed to hold 18 conventional polyethylene microcentrifuge tubes.
Firmly holds tubes in water bath or on PELCO ColdSpot Pro during processing.

Order

Art.Description Unit PriceQuantity
36134

PELCO Microwave Microcentrifuge Tubes PTFE Holder

Each € 75,80
✓
spinner
Brand: Ted Pella

Product
Description
Order
Product

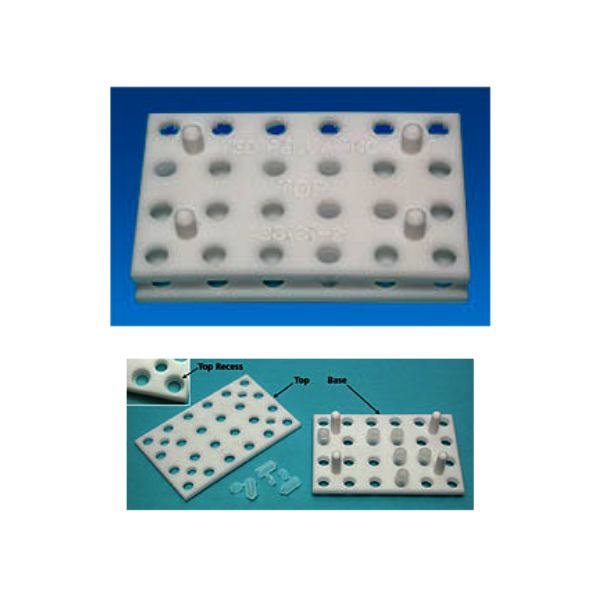

Microwave Capsule Holder with Lid
The improved PELCO Microwave Capsule Holder has three design features that set it apart from the previous design.
no. 36131-2

Description

PELCO Microwave Capsule Holder with Lid

The improved PELCO Microwave Capsule Holder has three design features that set it apart from the previous design.

  • “Stops” on the legs to keep the capsule base level during loading
  • A hole with a stop in the base to allow the 00 embedding capsule to be set in place easily
  • The new capture top that has a recess to keep the embedding capsule lid in place throughout the polymerization process in the microwave
Order

Art.Description Unit PriceQuantity
36131-2

PELCO Microwave Capsule Holder with Lid

Each € 283,30
✓
spinner
Brand: Ted Pella

Product
Description
Order
Product

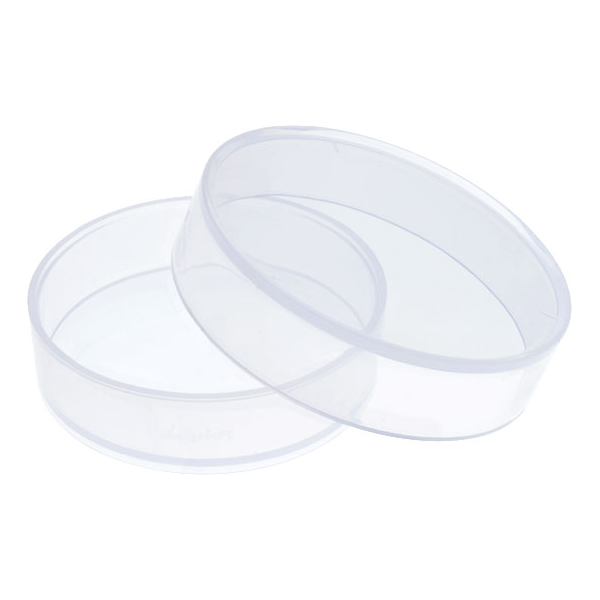

Polypropylene Petri Dishes
Polypropylene Petri Dishes are microwave transparent and sturdy.
no. 36135 and 36135-5

Description

Polypropylene Petri Dishes

Polypropylene Petri Dishes are microwave transparent and sturdy.
These dishes can be coupled with the PELCO Prep-Eze holders for microwave processing.

Bottom inside dimensions: 50mm dia. x 12mm deep
Lid inside dimensions: 56mm dia. x 10mm deep

Order

Art.Description Unit PriceQuantity
36135

Polypropylene Petri Dishes, 50mm ID x 12mm, pk/100

Each € 48,10
✓
spinner
36135-5

Polypropylene Petri Dishes, 50mm ID x 12mm, pk/500

Each € 213,50
✓
spinner
Brand: Ted Pella

Product
Description
Order
Product

Microwave Polymerization System
Designed for resin polymerization using the 36131 or 36131-2 Capsule Holders in the PELCO BioWave Microwave Tissue Processor, Includes Tray, Insulator Pad and Lid
no. 36133 and 36133-10

Description





Microwave Resin Polymerization System

Designed for resin polymerization using the 36131 or 36131-2 Capsule Holders in the PELCO BioWave Microwave Tissue Processor

During microwave-assisted resin polymerization the microwave polymerization system is placed on the Microwave Polymerization Stand on the PELCO ColdSpot Pro.
The tray is filled with water to cover the 36131 or 36131-2 capsule holders.

The insulator pad is placed on the surface of the water and the lid placed on the tray.
There are two holes in the lid so that the temperature probe can be inserted on either side to monitor heating rates.

This new system controls the rate of heating and the temperature maximum (100 C) without the loss of water during the polymerization process.

Microwave wattage will control the heating rate which ensures a quality polymerization each run.

Microwave Polymerization System
shown with the Polymerization Stand (36133-20)
and PELCO Microwave Capsule Holder (36131-2)
on the PELCO ColdSpot Pro (36116-10)
Microwave Polymerization Stand (36133-20)
Order

Art.Description Unit PriceQuantity
36133

Microwave Polymerization System

Each € 48,10
✓
spinner
36133-10

Replacement Insulator Pads, 1/2″ thick

3 € 20,90
✓
spinner
Brand: Ted Pella

Product
Description
Order
Product

Corning Costar Tissue Culture Plates
Tissue Culture-treated Plates are designed for a wide range of applications
no. 36168-6 to 36168-24

Description

Corning Costar Tissue Culture Plates

Tissue Culture-treated Plates are designed for a wide range of applications including general cell growth experiments, cloning studies, virus isolation and in vitro testing.

Plate bottoms have a uniform thickness, allowing for distortion-free observation. Alphanumeric coordinates are placed on the same focal plane as cell growth, for convenient referencing of cell position. Gripping edges make handling easier.

All plates have non-reversible covers with condensation rings to minimize evaporation and the risk of contamination.

Plates are made of optically clear, medical-grade non-pyrogenic polystyrene, TC-treated, sterile and are used for processing of tissue on the bench or in the microwave. The corresponding Wellplate Inserts are No. 36168 for the 6 cavity, No. 36170 for the 12 cavity, and No. 36172 for the 24 cavity.

Ordering Information

No. of Wells Well Dia. Well Growth Area Total Well Volume Working Volume
36168-6 6 35mm 9.5cm2 15ml 2-3ml
36170-12 12 22.6mm 3.8cm2 7ml 1ml
36172-24 24 16mm 1.9cm2 3.4ml 0.5ml
Order

Art.Description Unit PriceQuantity
36168-6

Tissue Culture Plate, 6 wells

10 € 79,20
✓
spinner
36170-12

Tissue Culture Plate, 12 wells

10 € 87,00
✓
spinner
36172-24

Tissue Culture Plate, 24 wells

10 € 96,30
✓
spinner
Brand: Ted Pella

Product
Description
Order
Product

Amplate Roller
Roller made of medium hard rubber secured in a heavy duty handle.
no. 36167

Description

Amplate Roller

Manufactured with a comfort grip to assist in creating a perfect seal when used with SecureSeal Sealing Film.

Order

Art.Description Unit PriceQuantity
36167

Amplate roller

Each € 57,60
✓
spinner
Brand: Ted Pella

Product
Description
Order
Product

8-Section Staining Nets
Available with netting of 32 mesh or 64 mesh
no. 36154-32 and 36154-64

Description

8-Section Staining Nets

Dimensions: 89 x 38mm.

Available with netting of 32 mesh or 64 mesh

Rod in center of net can be grasped to lift net from Staining Dish.

Order

Art.Description Unit PriceQuantity
36154-32

8-Section Staining Net, 32 mesh

Each € 148,60
✓
spinner
36154-64

8-Section Staining Net, 64 mesh

Each € 148,60
✓
spinner
Brand: Ted Pella

Product
Description
Order
Product

Pyrex Staining Dish
For use with Staining Nets.
no. 36754-60

Description

Pyrex Staining Dish

100mm diameter x 50mm H, for use with above Staining Nets.

Order

Art.Description Unit PriceQuantity
36754-60

Pyrex Staining Dish

Each € 80,30
✓
spinner
Brand: Ted Pella

Staining

Loading...
Product
Description
Order
Product

PELCO Prep-Eze Wellplate Inserts
The rectangular polypropylene Wellplate Inserts have 6, 12, or 24 wells
no. 36168 to 36170-24

Description

PELCO Prep-Eze Wellplate Inserts

The rectangular polypropylene Wellplate Inserts have 6, 12, or 24 wells and will fit into the Corning Costar Tissue Culture Plates of 6/12/24 Wellplate design. A 420 m opening, polypropylene mesh is at the bottom of each of the insert wells.

The Wellplate Inserts may only be chemically sterilized.

The outside dimensions of the Wellplate Inserts are: 81.3mm W x 123.5mm L x 24mm H

Well dim. of 6-wellplate inserts: 24.1mm dia x 22.3mm D
Well dim. of 12-wellplate inserts: 14.2mm dia x 22.3mm D
Well dim. of 24-wellplate inserts: 11.2mm dia x 22.3mm D
Depth of well from top to bottom on all Wellplate Inserts: 17.68mm

Order

Art.Description Unit PriceQuantity
36168

PELCO Prep-Eze™ 6-wellplate Insert

Each € 145,80
✓
spinner
36170

PELCO Prep-Eze™ 12-wellplate Insert

Each € 140,30
✓
spinner
36172

PELCO Prep-Eze™ 24-wellplate Insert

Each € 316,80
✓
spinner
36168-8

6-well Insert (or 24.1mm dia.) Replacement Mesh, 420 m

30 € 46,10
✓
spinner
36170-14

12-well Insert (or 14.2mm dia.) Replacement Mesh, 420 m

Each € 46,10
✓
spinner
36170-24

24-well Insert (or 11.2mm dia.) Replacement Mesh, 420 m

48 € 46,10
✓
spinner
Brand: Ted Pella

Product
Description
Order
Product

Individual Wells
Great for processing individual specimens or keeping specimens separate from others.
no. 36169 to 36173

Description

Individual Wells

Great for processing individual specimens or keeping specimens separate from others.
Same wells as used in the Wellplate Inserts above but on an individual basis.

Made entirely from polypropylene.
Available in three sizes, all with 420 m openings in the screen.

Dimensions of the Individual Wells:

Outside
Diameter
Inside
Diameter
Deep Opening
Individual Well 6 #36169 31.7mm 24.1mm 22.3mm 420 m
Individual Well 12 #36171 19.25mm 14mm 22.3mm 420 m
Individual Well 24 #36173 14.55mm 11.2mm 22.3mm 420 m
Order

Art.Description Unit PriceQuantity
36169

Individual Well, 24.1mm I.D. x 22.3mm Deep, 420 m opening screen, all polypropylene

Each € 38,20
✓
spinner
36171

Individual Well, 14.2mm I.D. x 22.3mm Deep, 420 m opening screen, all polypropylene

Each € 23,50
✓
spinner
36173

Individual Well, 11.2mm I.D. x 22.3mm Deep, 420 m opening screen, all polypropylene

Each € 13,80
✓
spinner
Brand: Ted Pella

Product
Description
Order
Product

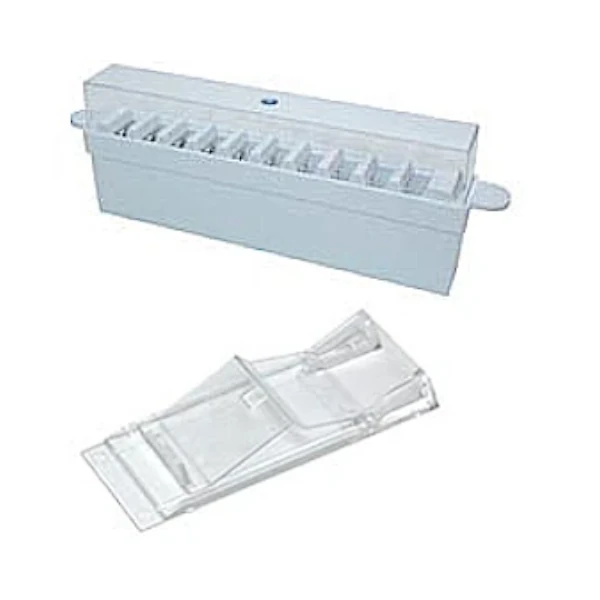

Microwave-assisted Immunostaining on Glass Slides
no. 36105 and 36107

Description

Microwave-assisted Immunostaining on Glass Slides

using the Sequenza Slide Rack and Coverplate system

The Sequenza Slide Rack, holding 10 glass slides and Coverplates, is a system designed for the immunolabeling of sections on glass slides. While originally designed for bench techniques, this system is uniquely suited for microwave-assisted applications.

The Slide Rack holds glass slides with a Coverplate. This combination forms a capillary gap between the slide and the plate.
Reagent volumes, especially antibody, are greatly reduced using this versatile system. A reagent hopper forms the uppermost part of the plastic Coverplate allowing for easy dispensing of reagent into the capillary gap.

Using a PELCO Microwave Processor with a PELCO ColdSpot, rapid immunostaining of sections on glass slides is reliable and easy.

Clean with 10% bleach solution and rinse with well water. Sequenza Slide Rack and Coverplate system is not dishwasher safe.

Order

Art.Description Unit PriceQuantity
36105

Sequenza Slide Rack

Each € 1.367,20
✓
spinner
36107

Coverplate Assemblies

25 € 297,60
✓
spinner
Brand: Ted Pella

Vacuum

Loading...
Product
Description
Order
Product

Pelco Tissuevac
The PELCO TissueVac Histology Vacuum Accessory is designed for the PELCO BioWave Pro+ Microwave Processor and can be used in conjunction with the PELCO ColdSpot.
no. to 36160-7

Description

PELCO TissueVac®

Histology Vacuum Accessory
Vacuum Chamber and Embedding – Processing Cassette Holder – for Microwave Processing

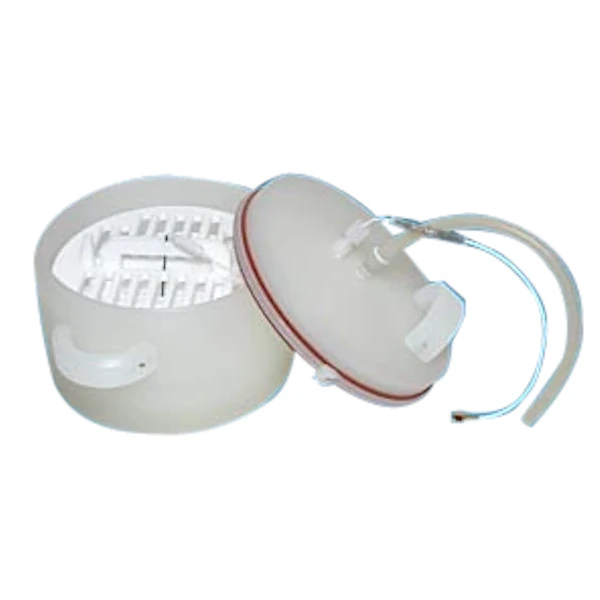

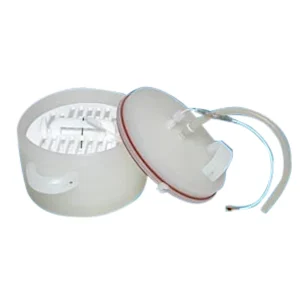

ELCO TissueVac® Accessory shown with Cassette Holder
in Vacuum Chamber / Processing Container with Temperature Probe inserted



The PELCO TissueVac® Histology Vacuum Accessory is designed for the PELCO BioWave® Pro+ Microwave Processor and can be used in conjunction with the PELCO ColdSpot®.
It can be used with any of the three vacuum settings on the PELCO BioWave® Pro (vacuum cycle, vacuum on W/MW, vacuum on) or without the vacuum function.

The container and lid are made from microwave-transparent polypropylene. The integrated temperature probe allows the use of temperature restriction conrol with vacuum.

The cassette holder will hold up to 58 standard size plastic cassettes, all in the same orientation and plane. This assures that every tissue sample will see the same microwave conditions.
The paraffin heating tile is used as a heat receptor during paraffin infiltration.

The PELCO TissueVac® System is comprised of the following components:

  • Processing Container (36160-1)
  • Lid Assembly (36160-2)
  • Cassette Holder (PTFE) for 58 cassettes (36160-3)
  • Paraffin Heating Tile (36160-4)
  • PTFE coated Temperature Probe (36160-5)
  • L-gasket (36160-6); Nylon Locking Strap (36160-7)
  • Operation Manual.

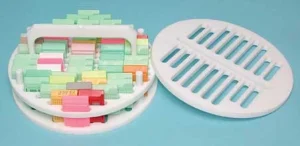

Cassettes loaded into Round Cassette Holder 36160-3 Top piece put in place Paraffin Heating Tile

Vacuum Chamber outside dimensions:
169.9mm H (with handle) x 277.8mm W (with handles)
(6.69″ H x 10.09″ W)

Vacuum Chamber inside dimensions (with paraffin heating tile and lid in place):
92.2mm H x 177.3mm dia. (3.63″ H x 6.98 dia.)

Cassette Holder dimensions (with handle):
7.94cm H (with handle) x 17.5cm dia. (3.125″ H x 6.875″ dia.)

Order

Art.Description Unit PriceQuantity
36160

PELCO TissueVac System

Each € 1.468,60
✓
spinner
36160-1

Processing Container

Each € 544,50
✓
spinner
36160-2

Lid Assembly for 36160

Each € 568,80
✓
spinner
36160-4

Paraffin Heating Tile for 36160

Each € 149,50
✓
spinner
36160-5

PTFE coated Temperature Probe

Each € 337,10
✓
spinner
36160-6

L-gasket for 36160

Each € 74,10
✓
spinner
36160-7

Nylon Locking Strap

Each € 4,80
✓
spinner
Brand: Ted Pella

Product
Description
Order
Product

EM Pro Vacuum Chamber
Can be used in or outside of the PELCO BioWave Pro Microwave Tissue Processor.
no. 3536 and 3536-10

Description

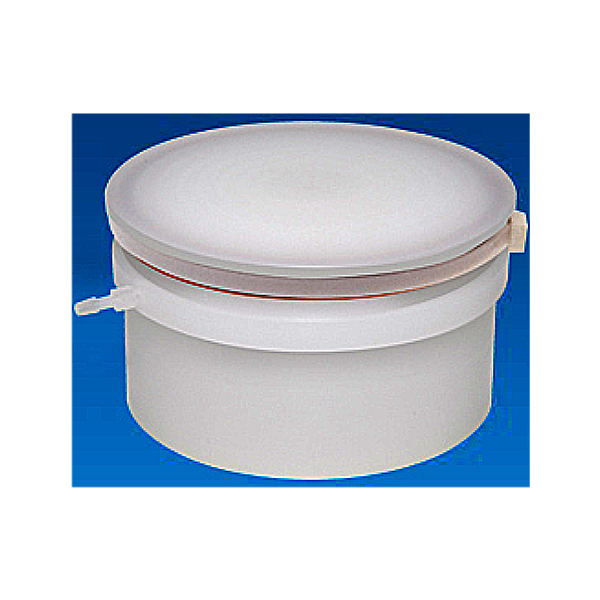

PELCO EM Pro Vacuum Chamber

Features

  • Made of chemically resistant, microwave-transparent polypropylene and designed for vacuum down to 20″ of Hg (1 torr/1mm Hg) and temperatures up to 70 C.
  • Designed either to run a continuous vacuum during microwave processing or a vacuum cycle.
  • Improves fixative penetration and ultrastructural preservation during microwave-assisted chemical fixation.
  • Improves resin infiltration in the microwave and greatly reduces the turnaround times when compared to established microwave protocols.

Can be used in or outside of the PELCO BioWave Pro Microwave Tissue Processor.

Dimensions

Inside Chamber 178mm diameter x 84mm height
Overall Dimensions 203mm diameter x 111mm height
Top Plate with Temperature Probe Port (optional). Note that the Temperature Probe with cable connection for the PELCO BioWave Pro Microwave Tissue Processor is inserted (also optional)
See below for all accessories.
PELCO EM Pro Vacuum Chamber shown with optional Top Plate with temperature probe port and optional Temperature Probe in place.
Order

Art.Description Unit PriceQuantity
3536

PELCO EM Pro Microwave Vacuum Chamber, with Top Plate, Base Unit with L-gasket Vacuum Seal and 1/4″ Barb Fitting for vacuum hose attachment

Each € 1.246,50
✓
spinner
3435-1

Replacement Vacuum Chamber L-gaskets

2 € 188,80
✓
spinner
3536-10

Top Plate with Temperature Probe Port (optional accessory)

Each € 469,40
✓
spinner
Brand: Ted Pella

Contact

Van Loenen Instruments
Penningweg 69 E
1507 DE Zaandam

Tel :+31 75 614 90 40
E-mail  :info@loeneninstruments.com

BTW/VAT nr. :NL804 608 180 B01
KvK nr. :28038099

Sign up for our News Letter

Our partners

© 2025 Van Loenen Instruments
