SawMicrotome
The RMS-16G3 is a new Table top Saw Microtome which has been specially developed to prepare slices of hard materials (eg. bone, teeth, minerals or artificial biomaterial devices) without decalcifying or destroying the morphology of the tissue specimen. SP-1600
The sections do not require further grinding or other processing steps, but can immediately after sectioning be used for light microscopically investigation. The section thickness is set manually with a digital device on top of the object arm.
A section thicknesses of approximately 30 microns can be achieved under optimal conditions.
The updated easy-to-use control panel makes working with the Saw Microtome straightforward while obtaining optimal results. The speed of the specimen advance can be adjusted precisely, with a controlled electrical drive. A higher or lower speed can simply be selected depending on the material to be sliced .
A built-in control unit prevents an overly high feed rate and thus avoids damage to the saw blade or sample.
The REHA-tech RMS-16G3 operating principle is based on a specimen holder which is guided extremely slowly against the rotating cutting edge of a diamond coated inner-hole saw blade. The sample will be embedded in resin, and subsequently is cut by a diamond-coated inner-hole saw blade. The thickness of this blade is just 260 microns, which means that there is little waste of the specimen.
Thus, usually multiple serial sections can be made from one single tissue specimen. The speed of the object holder can be adjusted according to the specimen conditions. Compared to the sectioning principle, the sawing method causes less compression.
The speed of the rotating blade is approximately 600 rpm. During the sawing process, a constant flow of cooling agent is adjusted to land directly on the edge of the saw blade, and thus prevents overheating.
For the preparation of thin sections, first a glass cover slip is glued onto the trimmed surface of the specimen block, after which the Saw Microtome is started. After the section is prepared, it is removed from the saw blade and placed onto a microscopy slide.
The speed of the rotating blade is approximately 600 rpm. During the sawing process, a constant flow of cooling agent is adjusted to land directly on the edge of the saw blade, and thus prevents overheating.
For the preparation of thin sections, first a glass cover slip is glued onto the trimmed surface of the specimen block, after which the Saw Microtome is started. After the section is prepared, it is removed from the saw blade and placed onto a microscopy slide.
The speed of the rotating blade is approximately 600 rpm. During the sawingprocess, a constant flow of cooling agent is adjusted to land directly on the edge of the saw blade, and thus prevents overheating.
For the preparation of thin sections, first a glass cover slip is glued onto the trimmed surface of the specimen block, after which the Saw Microtome is started. After the section is prepared, it is removed from the saw blade and placed onto a microscopy slide.
Sample fixation
The specimen holder can be easy exchanged bythe new adjustable gripper system.
You can prepare the specimen on the various separately available sample holders and screw them onto the holder. It is also possible to manufacture these sample containers especially for you. there is also a possibility to attach a clamping mechanism and with this you can clamp the sample directly.
It’s also possible to adjust the angle of the specimen. This allows you to cut the ideal section. The digital counter makes it easy to adjust the thickness of the sample with a accuracy of 1 µm.
Easy to use

Our saw blade assembly will fit into the
Leica SP1600
Accessories
New cutting blades including holder are on stock and can be delivered in 1 week.
We also have the opportunity to replace the blade and this service has a delivery time of approximately 2 weeks.
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|

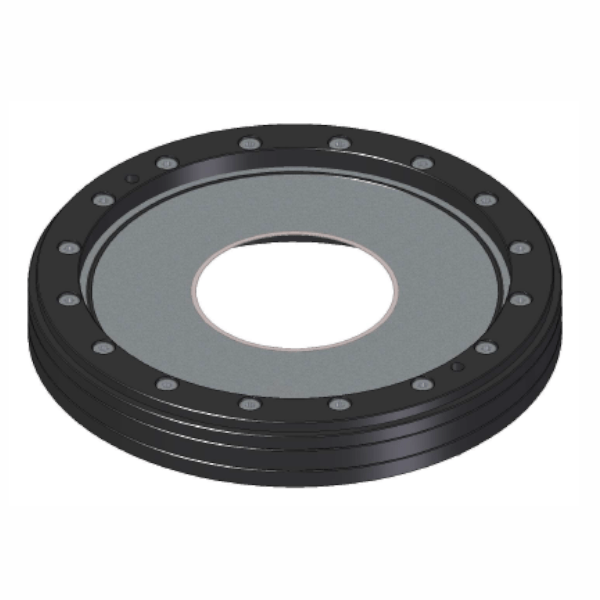

001-161410 | Saw assembly, blade in tension ring |
Each | € 2.364,00 |
With the sledge you have the possibility to set the sample at the right cutting angle.
You can also easily attach the prepared samples to the holder. For the options, see the consumables section.
If you want to make another cut of the same sample, you can easily mount it again.
And put it back in the right position.
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
001-185210 | Sledge |
Each | € 1.276,00 |
In places where there is no running water, the optional pump unit can be used.
This will be mounted on the back of the microtome and can be switched on and off with the control panel.
The pump is will work with the 10 liter reservoir 001-181006
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
001-184523 | Pump unit |
Each | € 1.813,00 |
For use with pump unit 001-184523
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
001-181006 | Reservoir |
Each | € 666,00 |
With the use of this tool you can level the top of the already cut sample back in the right position.
Use the 2 pins on the sledge to position the table directly above the sample and correct the position of the sample until it is positioned correctly.
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
001-160803 | Position tool |
Each | € 207,60 |
It’s also possible to adjust the angle of the specimen and rotate it.
This allows you to cut the ideal section.
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
001-200456 | Gripper sample holder |
Each | € 1.112,00 |
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
001-185212 | Glue base PMMA |
Each | € 402,00 |
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
001-191101 | Glue base Brass |
5 | € 88,00 |
To glue a sample on the Brass carrier and mount it on the sledge.
Design for multi use.
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
001-191201 | Glue base Brass |
5 | p.o.r. |
For embedding the SAMPLE in this PMMA container
The whole must be mounted on the sledge and is immediately ready for cutting.
Special containers on request.
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
001-190801 | UV Glue kit |
100 | p.o.r. |
