Cutlam Micro 3.0

Products

Cutlam Micro 3.0

This benchtop designed cutting machine offers astonishing capacities. Thanks to the multiple motion table, the cutting wheel, and the feed speed control system according to the cutting torque, this machine will overcome any difficult task.


Large capacity compact cutting machine

It is fitted with a large: 320 x 540 mm chamber, and equipped with a grooved aluminium table, sized 210 x 210 mm, and stainless steel interchangeable pallets.

The large capacity of the CUTLAM®micro 3.0 relies on the use of 230 mm cut-off wheel, combined with a vertical movement range of 100 mm (Z axis) and a longitudinal range of 270 mm (Y axis).


Precision.

The positioning of the axes, which can be seen on the screen is 0,01 mm accurate and feed speed while cutting can be set from 0,1 to 20 mm/sec or 0,1 to 10 mm/sec.

The use of the “smart motion” (read the following page about this device) will automatically reduce the moving of the axes in order to obtain a minimum value of 0,02 mm/sec.


User-friendly interface

A large touch-screen allows you to select the different functions using an easy to use, intuitive interface. All the positioning and cutting parameters can continuously be visible on the screen. The use of a joystick allows a fast positioning of the cut-off wheel; while in automatic and semi-automatic modes, an estimation of the remaining cutting time appears.

Three cutting modes are available: manual, semi-automatic and automatic


Efficiency: 5 key points for higher productivity:

  • Powerful motor of 1,1 kW.
  • Sequential cutting mode for a maximum cooling.
  • Ingenious feed speed control:
    • The feed speed is pre-set, and will be automatically reduced if the load on the cutting wheel increases. The pre-set speed returns when the load on the wheel decreases.
    • It improves the quality of the cut by limiting the heat damages on the samples.
    • Suitable for irregular samples and/or materials with heterogeneous hardness.
    • It prevents the wheel from breaking in case of overload.
    • It allows you to always work at maximum speed without any risk of damage.
  • Optional cross-feed table (X axis) manual or motorised for repetitive parallel cuts.
  • Independent lubrication/cooling system, composed of a 100 µ washable filter, and a 30 litres sedimentation tank with multi-point nozzle, insures excellent cooling of the sample and the cutting wheel even during intensive use.

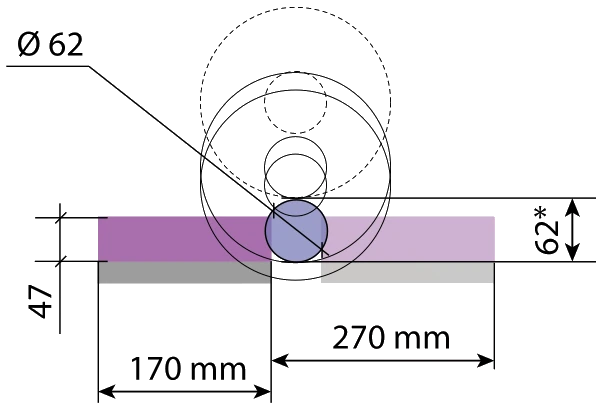

Theoretical cutting capacity: Ø 200 mm

*space under wheel

Specifications
Wheel Ø 75 to 200 mm
Shaft Ø 12,7 mm
Standard flanges Ø 75 mm
Passage under the wheel 62 mm (with a Ø 200 mm wheel)
Max cutting capacity Ø 62 mm (with a Ø 200 mm wheel)
Vertical movement Z axis 100 mm automatic
Longitudinal movement Y axis 270 mm automatic
Transversal movement X axis 55 mm manual or 50 mm motorised (optional)
Cooling/ Lubrication Decantation tank, 2 chambers, Input 100 µm filter, Pump 800 L/hour driven by the machine.
Motor power 1,1 kW
Rotational speed Variable, from 1000 to 4000 rpm.
Cutting modes Manual, semi-automatic, automatic
Feed speed control 0,1 to 20 mm/sec. programmable Automatic control of speed / power continuous or sequential
Lightening LED
Protection Transparent cover with locking system
Voltage 230 V – 50 Hz simple phase
Dimensions W x H x D 620 x 470 x 750 mm (H cover open 812 mm)
Weight 80 kg
Reference 60 CTM30 00
Loading...
Product
Order
Product

Cutlam Micro 3.0 – High precision automatic cutting machine
no. B6303

Order

Art.Description Unit PriceQuantity
B6303

Micro Cutting Machine CUTLAM MICRO 3.0 Y & Z Axis Automatic

Each p.o.r.
Brand: LamPlan

Accessories

Loading...
Product
Order
Product

Adaptor rings 22 x 12,7 mm
Adaptor rings, steel and PVC
no. 60 00608 90

Order

Art.Description Unit PriceQuantity
60 00608 90

Adaptor rings 22 x 12,7 mm, steel

5 p.o.r.
60 00609 90

Adaptor rings 22 x 12,7 mm, PVC

5 p.o.r.
Brand: LamPlan

Product
Order
Product

Adaptor rings 25,4 x 12,7 mm
Adaptor rings, steel and PVC
no. 60 00369 90

Order

Art.Description Unit PriceQuantity
60 00369 90

Adaptor rings 25,4 x 12,7 mm, Steel

5 p.o.r.
60 00370 90

Adaptor rings 25,4 x 12,7 mm, PVC

5 p.o.r.
Brand: LamPlan

Product
Description
Order
Product

Double vice with screw tightening system
no. 60 CT200 40

Description

Double vice with screw tightening system (left and right side of the wheel)

2 x 2 element vice, without sole to obtain maximal length clamping
Jaws width 80 mm, Jaws height 45 mm
T-slot 12 mm screw included
Left and right levers

Order

Art.Description Unit PriceQuantity
60 CT200 40

Double vice with screw tightening system

Each p.o.r.
Brand: LamPlan

Product
Description
Order
Product

Manual cross-feed table
(X axis) to cut parallel sections
no. 60 CTM3100

Description

Manual movement with a roller, stroke 55mm, precision 0,01mm.

Can receive right vice ref. 60CT200 20 or 60 CT200 40

Order

Art.Description Unit PriceQuantity
60 CTM3100

Transversal table (X movement)

Each p.o.r.
Brand: LamPlan

Product
Description
Order
Product

Manual cross-feed table (X axis) to cut parallel sections
(X movement) to execute parallel cuts. Manual movement
no. 60 CTM31 00

Description

Transervsal table (X movement) to execute parallel cuts.
Manual movement with a roller
stroke 55 mm
precision 0,01 mm.
Can receive right vice reference 60CT200 20 or 60 CT200 40.

Order

Art.Description Unit PriceQuantity
60 CTM31 00

Transervsal table

Each p.o.r.
Brand: LamPlan

Product
Description
Order
Product

Motorised cross feed table
(X axis) to cut parallel sections
no. 60 CTM34 00

Description

Stroke 50mm, precision 0,01mm

Order

Art.Description Unit PriceQuantity
60 CTM34 00

Motorised cross feed table (X axis) to cut parallel sections

Each p.o.r.
Brand: LamPlan

Product
Order
Product

Set of flanges 35 mm
For cut-off wheels 75 to 100 mm
no. 60 CTM01 10

Order

Art.Description Unit PriceQuantity
60 CTM01 10

Set of flanges 50 mm for cut-off wheels 125 to 150 mm

Each p.o.r.
Brand: LamPlan

Product
Order
Product

Set of flanges 50 mm
For cut-off wheels 125 to 150 mm
no. 60 CTM01 20

Order

Art.Description Unit PriceQuantity
60 CTM01 20

Set of flanges 50 mm for cut-off wheels 125 to 150 mm

Each p.o.r.
Brand: LamPlan

Product
Order
Product

Set of flanges 75mm
For cut-off wheels to 200 mm
no. 60 CTM01 30

Order

Art.Description Unit PriceQuantity
60 CTM01 30

Set of flanges 75 mm cut-off wheels to 200 mm

Each p.o.r.
Brand: LamPlan

Product
Order
Product

Small left vice with fast tightening system
Stroke 53 mm
no. 60 CTM33 00

Order

Art.Description Unit PriceQuantity
60 CTM33 00

Small left vice with fast tightening

Each p.o.r.
Brand: LamPlan

Product
Order
Product

Small right vice with fast tightening system
Stroke 53 mm
no. 60 CTM32 00

Order

Art.Description Unit PriceQuantity
60 CTM32 00

Small right vice with fast tightening system

Each p.o.r.
Brand: LamPlan

Product
Description
Order
Product

Support cabinet
For machine CUTLAM1.1 and CUTLAM3.1
no. 60 MO100 00

Description

Solid painted-steel piece of furniture specially designed for CUTLAM products.

It contains a storage door for tools and cut-off wheels, a drawer on top and a space for the recirculation tank.
This piece of furniture is stable and has adjustable feet.

For machine CUTLAM1.1
Dimensions L x H x P : 630 x 800 x 835 mm mm 60 M0100 00

For machine CUTLAM3.1
Dimensions L x H x P : 700 x 800 x 1050 mm

Order

Art.Description Unit PriceQuantity
60 MO100 00

CUTLAM support cabinet for Cutlam 1.1

Each p.o.r.
60 M0310 00

Support cabinet for CUTLAM 3.1

Each p.o.r.
Brand: LamPlan

Product
Order
Product

Universal clamping KOPAL 54
no. 60 CTM36 00

Order

Art.Description Unit PriceQuantity
60 CTM36 00

Universal clamping KOPAL 54

Each p.o.r.
Brand: LamPlan
