Cutlam 5.0

Products

Cutlam 5.0

The CUTLAM®5.0 is a pedestal-mounted machine with an integrated recirculation/decanter tank. It represents the ultimate equipment in terms of high-capacity programmable automatic cutting machines.

Power and advanced control of the cutting steps will guarantee first class efficiency and productivity.

Wheel and table movements

Fitted in standard with a Ø 355 mm wheel, which produces an automatic vertical and longitudinal movement. The automatic transverse movement is carried out by an optional cross-feed table.

All cutting modes are possible

  • Automatic or manual cutting.
  • Continuous automatic cutting with ingenious feed speed control:
    • The feed speed is pre-set, and will be automatically reduced if the load on the cutting wheel increases. The pre-set speed returns when the load on the screen decreases.
    • It improves the quality of the cut by limiting the thermal damages over the samples.
    • It is suitable for irregular samples and/or material with heterogeneous hardness.
    • It prevents the wheel from breaking in case of overload.
    • It allows you to work at maximum speed without any risk of damage.
  • Automatic sequential cutting for maximum cooling.
  • Plunge cutting, horizontal feed cutting and oscillating cutting.
  • Repetitive parallel cutting.

Controls

Programming is performed via a large touch screen with a graphical interface that ensures you an intuitive use. Cutting parameters are continuously visible on the screen. Fast positioning of the cutting point is provided by the use of a joystick.

Easy programming

Depending on the location of the sample on the table, and on its dimensions, the screen will indicate the various necessary and possible moves in order to complete the cut. This data can then be saved.

Technical characteristics and equipment

A high-capacity, independent cooling/recirculation system (140 liters) is located under the machine. The multipoint nozzles insure excellent cooling of the sample and the cutting wheel even during intensive use.

Fast cleaning is made possible thanks to an exterior shower head and a carefully designed cutting chamber.

The wide cutting table: W 408 x D 422 mm is composed of two independent parts. 4 longitudinal grooves and 6 transversal grooves that allow to fix all kind of clamping systems available as options or on the market.

Options
Machine for cut-off wheel Ø 400 mm60 CT503 00
Positioning laser60 CT506 00
Machine variations
Machine with motorised cross-feed table (X axis) stroke 120 mm, accuracy 0,05 mm60 CT50A 10
Machine with motorised cross-feed table (X axis) stroke 380 mm, accuracy 0,05 mm60 CT50A 100

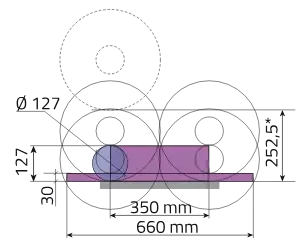

Theoretical cutting capacity

*space under wheel

Specifications
Wheel Ø
355 mm (400 mm optional)
Shaft Ø
25,4 mm
Standard flanges Ø
100 mm
Max cutting capacity
Ø 127 mm (with Ø 355 mm wheel) + opening on left and right hand side for long parts
Passage under the wheel
252,5 mm (Ø 355 mm wheel)
Vertical movement
Z axis stroke 350 mm, speed from 0,1 to 25 mm/sec, speed advanced 50 mm/sec
Longitudinal movement
Y axis stroke 350 mm speed from 0,1 to 25 mm/sec advanced speed 50 mm/sec
Transversal movement
X axis stroke 120 mm (optional)
Lubrification
Recirculation system, 140 litres, on casters
Cleaning system integrated, with a shower head outside of the cutting chamber
Motor power
5,5 kW
Rotational speed
Variable, from 1000 to 4000 rpm
Table
Treated aluminium and interchangeable stainless
Steel plate, W 408 x D 422 mm
Type of groove
T-slots 12 mm (4 longitudinal, 6 transversal)
Lightening
LED strip
Protection
Cover with locking system
Body
Steel coated with epoxy paint
Pneumatic feeding
6 bars filtered 5 µ
Electrical power
12 kW combined
Electrical consumption
32 Ah
Voltage
400 Volts – 50 Hz (three-phase + ground)
Dim. W x H x D
877 (+ 600 mm with control panel) x 1727 x 1800 mm
(H. cover open 2272 mm)
Weight
750 kg
Reference
60 CT50A 00
