Cutlam 1.1
range of applications. Robust and easy to use,with a deported motor design, this machine has a very large cutting capacity.This machine offers a spacious cutting table, made of treated anti corrosive cast iron. It is also easy to handle with a fully opening cover and remote motor. The 4 perpendicular grooves enable you to clamp components of thicknesses up to 120 mm. The CUTLAM®1.1 can be equipped with Ø 250 to 305 mm cut-off wheels.
Fitted with a speed adjuster and a powerful 3.8 Kw motor particularly adapted to Ø 305 mm wheels, the CUTLAM®1.1 is perfect for intensive use.
The high-capacity recirculation system with pre-filter and decanter compartments ensures optimum lubrication and cooling by a multi-point spray.
The Cutlam 1.1 is a bench-mounted cutting machine designed for a wide range of applications. Robust and easy to use, this machine has a very large cutting capacity.
- Spacious cutting table made from anti-corrosive cast iron
- Easy-to-handle fully opening cover and remote motor
- Ability to clamp components of thicknesses up to 120mm
- Can be equipped with Ø 250 to 305mm cut-off wheels
- Speed adjuster and powerful 3.8 kW motor – perfect for intensive use
- High-capacity recirculation system with pre-filter and decanter compartments, ensuring optimum lubrication and cooling by a multi-point spray
- External shower head combined with a tilted cutting chamber for easy cleaning
- Inlet filter ensuring samples do not fall down the large-diameter outlet pipe
Cutting of a sphere

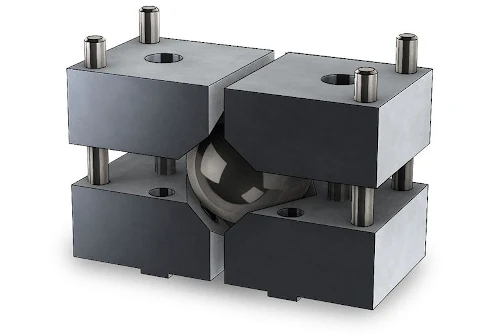

One of the recurrent issues remaining in the cutting processes is the clamping of spherical parts. The implementation of this kind of vice on the cutlam®1.1 enables to cut spheres having a diameter going from 30 mm to 60 mm
Cutting of a glass cylinder with double wheel

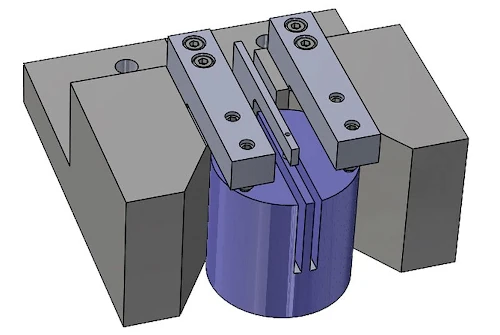

Tools for removing a 3 mm slice from a Ø 50 mm glass cylinder, height 50 mm. This article includes the supply and installation of a specific clamping and a double wheel on a CUTLAM® 1.1 machine..
An external shower head combined with a tilted cutting chamber base makes cleaning easy, and an inlet filter ensures that your samples do not fall down the large-diameter outlet pipe.
This machine is offering 2 lateral openings, giving the possibility of cutting bars which have a 60 mm diameter.
Theoretical cutting capacity: Ø 305 mm
*space under wheel
Wheel Ø | 250 to 300 mm |
Shaft Ø | 25,4 mm |
Standard flanges Ø | 80 mm |
Max cutting capacity | Ø 110 mm (Ø 305 mm wheel) |
Passage under the wheel | 120 mm (Ø 305 mm wheel) |
Vertical movement | Manual |
Lubrification | Recirculation system, 60 litres, on casters, integrated cleaning system, with shower head located outside the cutting chamber |
Motor power | 3,8 kW |
Rotational speed | Variable, from 1000 to 4000 rpm |
Table | Groove treated stainless steel, 400 x 300 mm |
Type of groove | T groove 12 mm (2 longitudinals, 2 transversals) |
Lightening | LED |
Protection | Transparent cover with locking system |
Body | Epoxy painted coated steel |
Tension | 400 Volts – 50 Hz (three-phase) |
Dim. W x H x D | 630 x 650 x 820 mm H opened cover: 820 mm |
Weight | 125 kg |
Reference | 60 CT110 00 |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| B6301 | Cutlam Micro 1.1 – Laboratory micro cutting machine 75-150mm dia |
Each | p.o.r. |
Accessories
Solid painted-steel piece of furniture specially designed for CUTLAM products.
It contains a storage door for tools and cut-off wheels, a drawer on top and a space for the recirculation tank.
This piece of furniture is stable and has adjustable feet.
For machine CUTLAM1.1
Dimensions L x H x P : 630 x 800 x 835 mm mm 60 M0100 00
For machine CUTLAM3.1
Dimensions L x H x P : 700 x 800 x 1050 mm
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 60 MO100 00 | CUTLAM support cabinet for Cutlam 1.1 |
Each | p.o.r. | ||
| 60 M0310 00 | Support cabinet for CUTLAM 3.1 |
Each | p.o.r. |
The LAM PLAN vaccuming system extracts the “polluted” air inside the cutting chamber of your cutting machine.
- A special multilayer filter will stop the smallest polluting particles, thus preventing their dispersion into the atmosphere.
- The cutting fluid, in the liquid state, is returned to the cutting machine recirculation tank to be reused. (An evacuation is provided for this purpose on the vacuuming system).
- A cartridge post-filter, located above the suction system, ensures a high filtration level, up to 99.97%.
- An adapter part (LAM PLAN code 60CT20820) is provided to adapt the suction hose to the canopy of the LAM PLAN cutting machine.
- The vacuuming system is mounted on a trolley with wheels, allowing an easy positioning.
- A drain valve, located in the trolley, collects the condensate.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 60 CT204 00 | Oil mist extraction device – A1 |
Each | p.o.r. |
Double vice with fast tightening system (left and right side of the wheel)
2 x 2 elements vice, without sole, to obtain maximal length clamping
Jaw width 80 mm
Jaw height 45 mm
T-slot 12 mm screw included
Lever ( left and right )
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 60 CT200 20 | Double vice with fast tightening system |
Each | p.o.r. |
Double vice with screw tightening system (left and right side of the wheel)
2 x 2 element vice, without sole to obtain maximal length clamping
Jaws width 80 mm, Jaws height 45 mm
T-slot 12 mm screw included
Left and right levers
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 60 CT200 40 | Double vice with screw tightening system |
Each | p.o.r. |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 60 081282 20 | Universal clamping KOPAL 61 |
Each | p.o.r. |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 60 081282 40 | Lift for KOPAL 61 |
Each | p.o.r. |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 60 00285 90 | Long cam for KOPAL 61 |
Each | p.o.r. |
Transversal table (X movement) to perform parallel cuts.
Manual movement with roller
stroke 100 mm
Display accuracy: 0,01 mm
Can receive the right vice reference 60 CT200 20 or 60 CT200 40.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 60 CT205 20 | Transversal table (X movement) to perform parallel cuts |
Each | p.o.r. |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 60 CT206 20 | Double vice with fast tightening system for transversal table |
Each | p.o.r. |
